Deep or medium? Compare supers

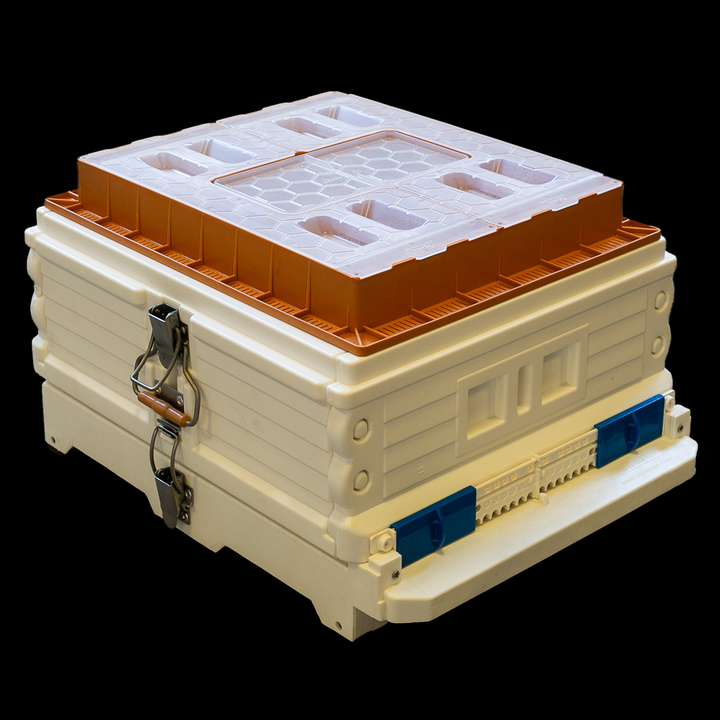

Turn a spare Apimaye deep or medium super into its own hive. For beekeepers who already have extra Ergo supers on hand. The kit includes an insulated top cover, a Dual Feeder and a screened bottom board with pollen trap, IPM tray and adjustable entrance, so one super becomes a complete single-colony hive for an emergency split or a caught swarm.
Getting started
- Medium super: the medium super adapter comes installed on the bottom board. Set the super on the board and latch it using the lower groove.
- Deep super: remove the medium super adapter by taking out the 4 screws at the corners with a Phillips screwdriver. Set the super on the board and latch it using the upper groove.
- Put the Dual Feeder on top of the super (it also serves as the inner cover), then the top cover.
What's in the box
- 1 insulated white top cover
- 1 Dual Feeder
- 1 Bottom Board for Apimaye Supers: screened bottom board with pollen trap, IPM tray, red plug and built-in adjustable entrance (works as an entrance reducer and mouse guard), latches, and the medium super adapter installed with 4 screws
- Not included: the super and frames.
Good to know
- Why supers need this kit to stand alone. The bottom brood box of an Ergo hive set has a shorter front wall to make room for the entrance on the Ergo bottom board. Deep and medium supers have a longer front wall, so they can't be used as the bottom box on an Ergo bottom board. This kit's bottom board is made for the supers' longer front wall, so a super can sit on it as its own hive.
- Works with Apimaye supers only. It fits the Ergo deep and medium supers in white or tan. It does not work with the bottom brood box of an Ergo hive set.
- No division board. Because of the height of the super and the bottom board, a division board can't be used with this kit, so it holds one colony.
- Running all mediums? The kit is the base for an all-medium hive: leave the medium super adapter in place and stack medium supers on it, so every box and frame is the same size and lighter to lift. Use 3 mediums for brood (about the same comb as 2 deeps), then add more mediums for honey. Most nucs are sold on deep frames, so an all-medium hive is easiest to start with a package of bees.
- Starting a new hive? Get the complete Ergo Single Brood Box Beehive Set in white or tan instead. It comes with an insulated deep brood box, top cover, feeders, screened bottom board with pollen trap, queen excluder and division board.
- Screened bottom board with built-in pollen trap. It improves ventilation and has a pull-out tray that doubles as an Integrated Pest Management (IPM) board, used to monitor and help control small hive beetle and Varroa mite populations.
- Adjustable entrance, built in. The entrance closes completely for moving the hive, narrows to help a small or weak colony defend against robbing, and keeps mice out over winter.
- Using the pollen trap: During a strong pollen flow, once the colony has plenty of pollen stored, slide the trap in from the back of the hive. Returning bees pass through small holes that knock the pollen off their legs into the tray below. Trap no more than 1–2 days a week so the colony keeps enough pollen for its brood, and empty the tray often. When you're not collecting, pull the trap out and put the red plug in its place. How the pollen trap works
- White only. The kit comes in white and works with both white and tan supers.
- Already have a top cover and feeder? The Bottom Board for Apimaye Supers is sold on its own.
- Setup manual: Hive Kit for Apimaye Supers manual (PDF). The manual shows an earlier version with 2 half feeders; the kit now ships with the Dual Feeder.
